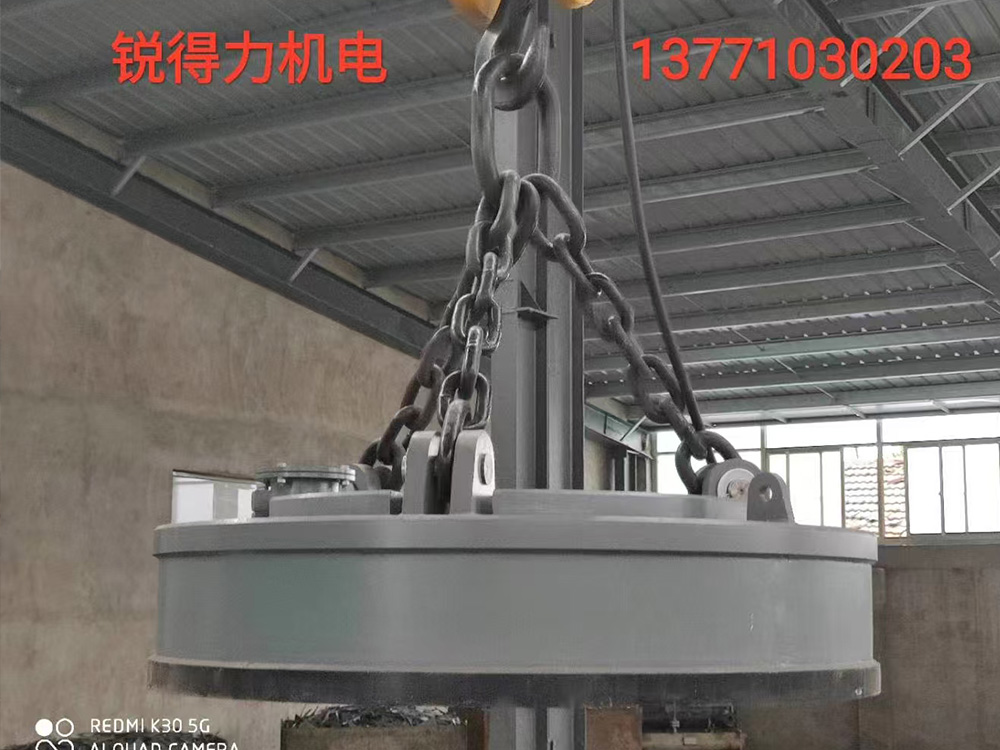

Purpose

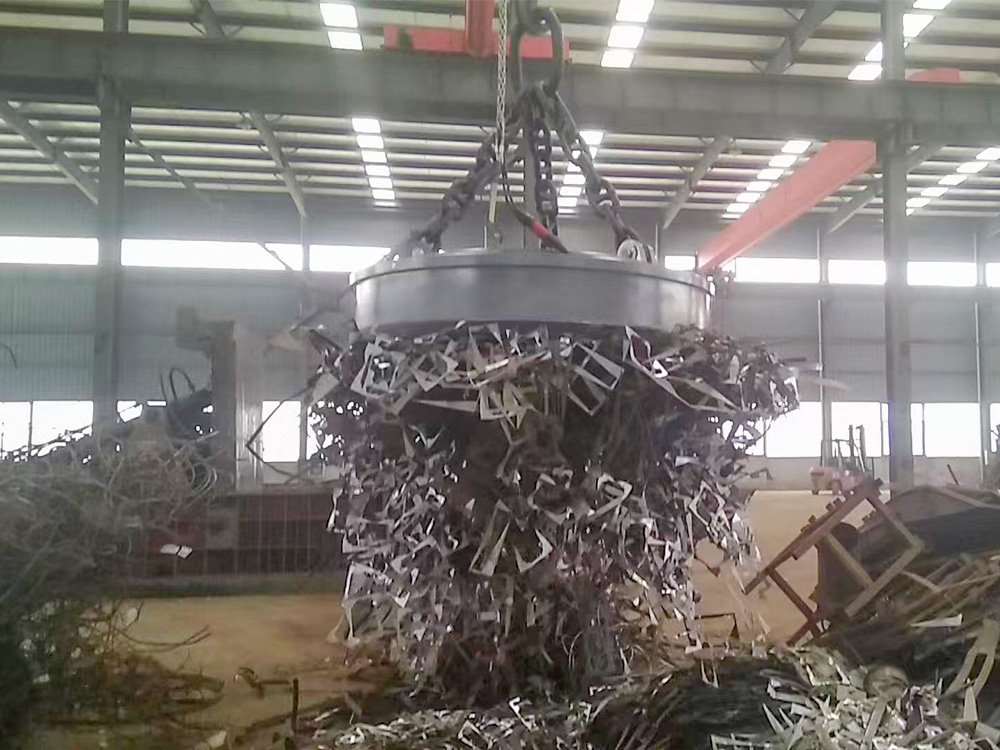

The MW series lifting electromagnet is widely used in the smelting, casting, and transportation sectors as a tool for transporting magnetic objects such as steel plates, steel, castings, steel ingots, pig iron ingots, and scrap steel.
The lifting electromagnet is installed and used in conjunction with control equipment, cable reels, and electronic weighing devices. It can effectively control the suction and discharge actions of the electromagnet and display certain weighing values during operation, ensuring safe and reliable use.
Model Description
Model Description:

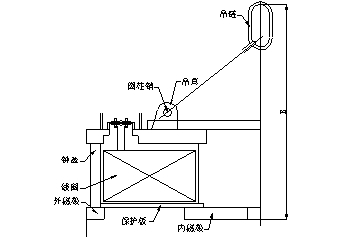

Structural diagram:
Specifications and technical parameters
Table 1: Double glass wire wrapped lifting electromagnet for hoisting ambient temperature scrap steel
(Room temperature type, power on duration TD=60%, rated voltage DC: 220V)
Project / Model | MW5-70L/1 | MW5-110L/1 | MW5-130L/1 | MW5-150L/1 | MW5-165L/1 | MW5-180L/1 | MW5-210L/1 | |
External dimensions | A | 700 | 1100 | 1300 | 1500 | 1650 | 1800 | 2100 |
B | 800 | 1080 | 1210 | 1220 | 1230 | 1470 | 1800 | |
Self weight(㎏) | 500 | 1250 | 2050 | 2700 | 3400 | 4100 | 5800 | |
Power(kw) | 3.2 | 7 | 11.9 | 15.6 | 19.8 | 22.4 | 27.06 | |
Cold Current(A) | 14.7 | 35.1 | 54 | 71 | 90 | 102.4 | 123 | |
Weight absorption capacity (㎏) | Steel Ball | 2500 | 6500 | 8500 | 11000 | 13000 | 14500 | 17000 |
Cast Iron Ingot | 380/200 | 1000/800 | 1400/1100 | 1900/1500 | 2300/1800 | 2750/2100 | 3200/2500 | |
Steel Scrap | 120/100 | 450/400 | 700/600 | 1100/900 | 1350/1040 | 1600/1350 | 2000/1600 | |
Supporting equipment | 1 | GDK or DKP Series | ||||||
2 | DJ1 or DJ2 Series | |||||||
3 | CTZ or DL Series | |||||||
Table 2: Double glass wire wrapped lifting electromagnet for lifting high-temperature (below 500 ℃) scrap steel
(High temperature type, power on duration TD=60%, rated voltage DC: 220V)
Project / Model | MW5-70L/2 | MW5-110L/2 | MW5-130L/2 | MW5-150L/2 | MW5-165L/2 | MW5-180L/2 | MW5-210L/2 | |
External dimensions | A | 700 | 1100 | 1300 | 1500 | 16500 | 1800 | 2100 |
B | 824 | 1225 | 1280 | 1330 | 1350 | 1515 | 1912 | |
Self weight(㎏) | 520 | 1540 | 2200 | 3390 | 3800 | 4340 | 7410 | |
Power(kw) | 2.81 | 5.32 | 9.9 | 11.3 | 14.3 | 20.9 | 22 | |
Cold Current(A) | 12.77 | 24.16 | 45 | 51.4 | 65 | 95 | 100 | |
Weight absorption capacity (㎏) | Steel Ball | 2500 | 6500 | 8500 | 11000 | 1300 | 14500 | 17000 |
Cast Iron Ingot | 380/200 | 1000/800 | 1400/1100 | 1900/1500 | 2300/1500 | 2750/2100 | 3200/2500 | |
Steel Scrap | 120/100 | 450/400 | 700/600 | 11000/900 | 1350/1040 | 1600/1350 | 2000/1600 | |
Supporting equipment | 1 | GDK or DKP Series | ||||||
2 | DJ1 or DJ2 Series | |||||||
3 | CTZ or DL Series | |||||||
Cast Iron Ingot | 400/210 | 1000/800 | 1470/1100 | 2000/1600 | 2300/1800 | 2800/2100 | 3500/2700 | |
Steel Scrap | 126/100 | 470/410 | 720/620 | 1280/960 | 1350/1040 | 1680/1420 | 2120/1600 | |
Supporting equipment | 1 | GDK or DKP Series | ||||||
2 | DJ1 or DJ2 Series | |||||||
3 | CTZ or DL Series | |||||||
Note: Our factory has supporting equipment for electromagnets, including 1. control equipment, 2. cable reels, and 3. cable connectors

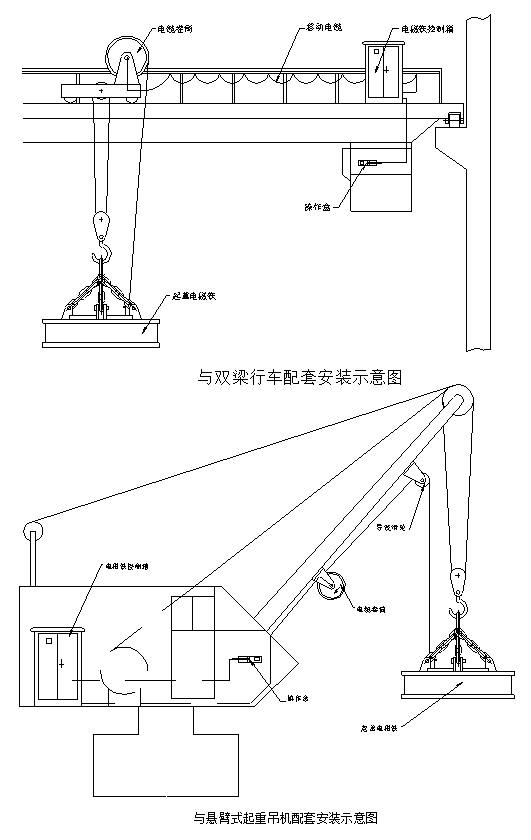

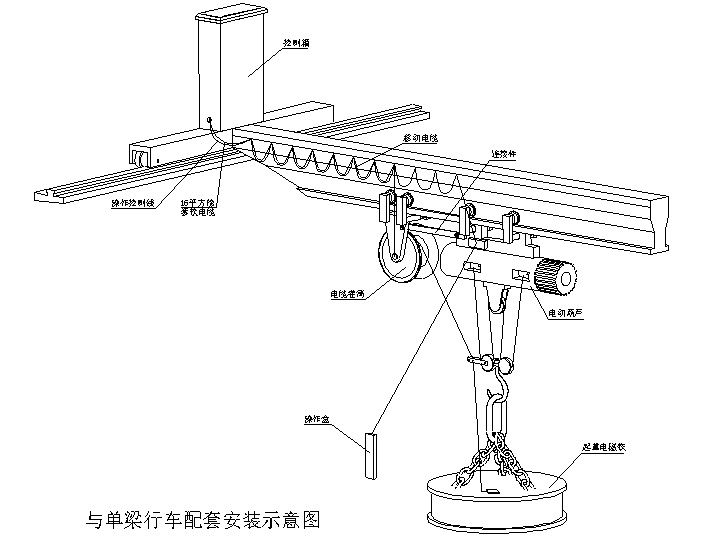

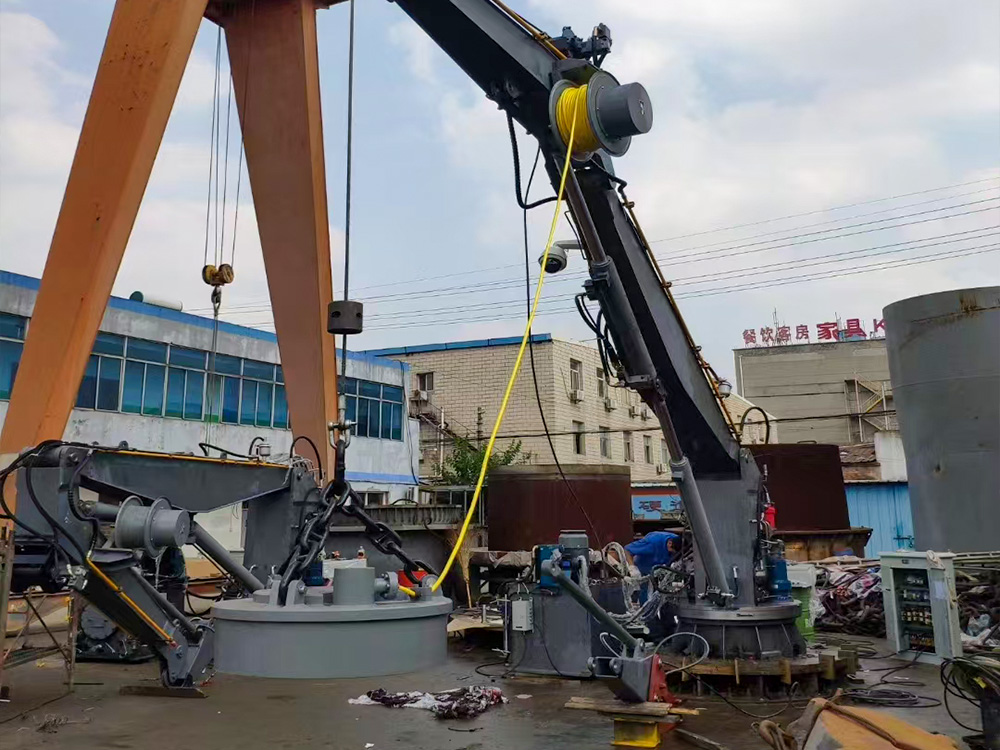

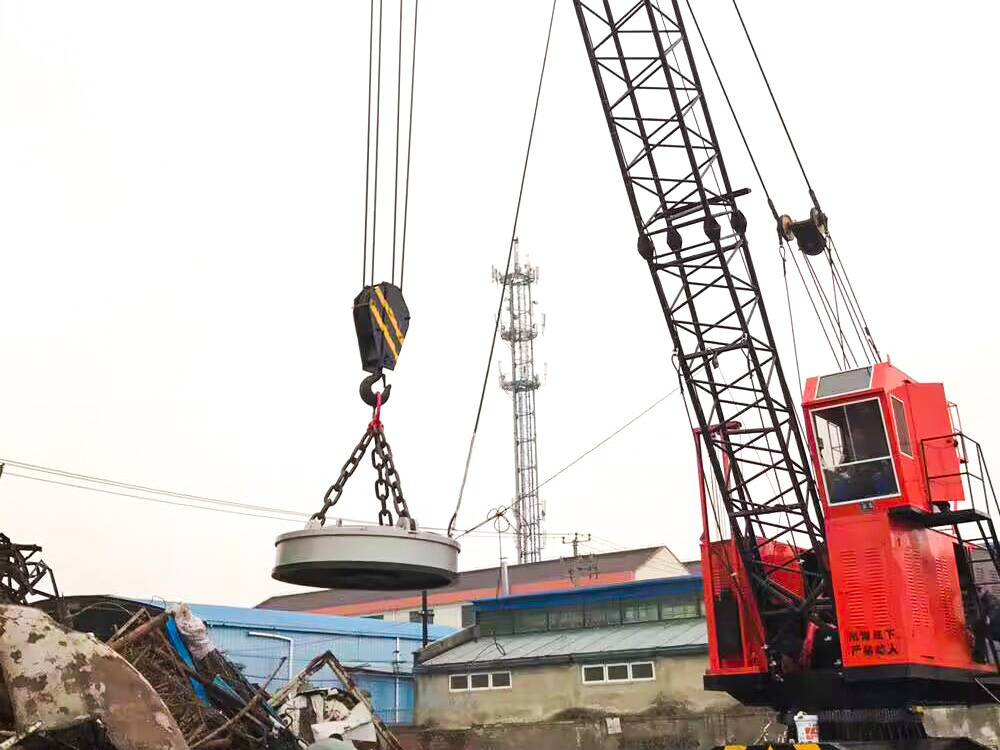

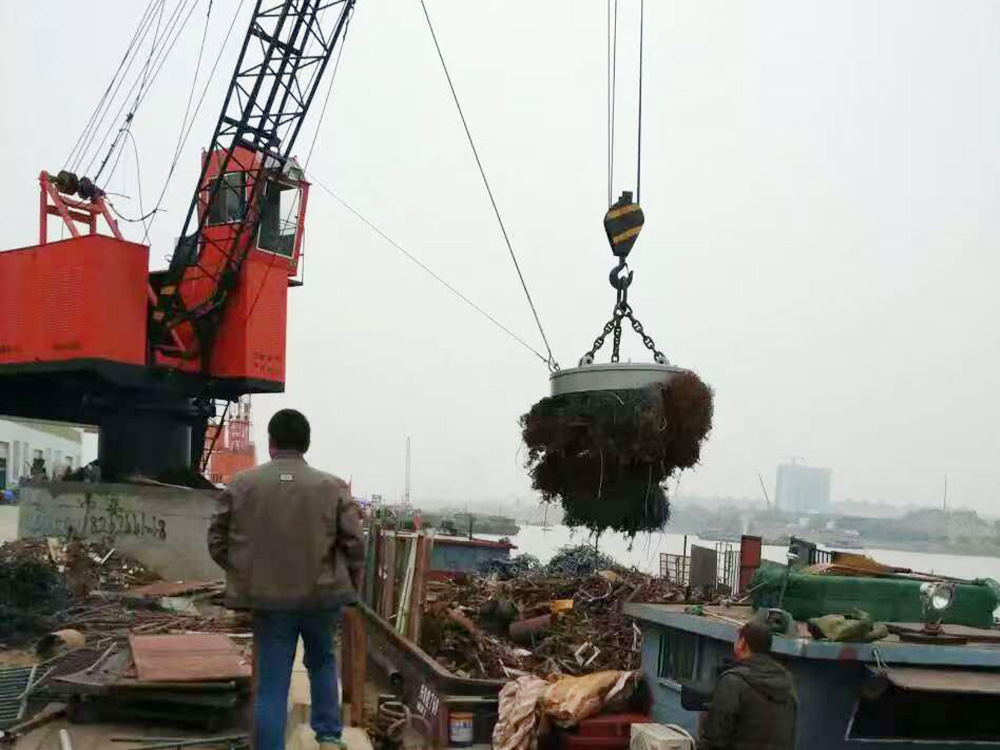

installation diagram
