1. The design complies with the requirements of IEC80005-1:2023 and its Schedule C, and can provide shore power transmission of 11KV@16MVA, 60HZ and 6.6KV@12MVA, 60HZ.

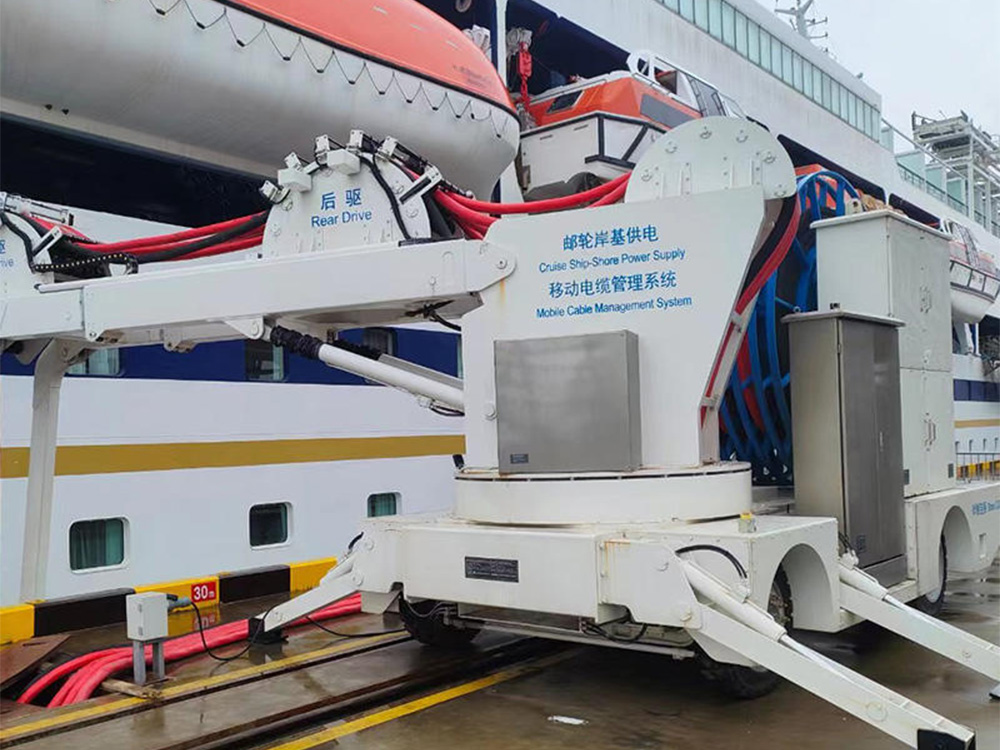

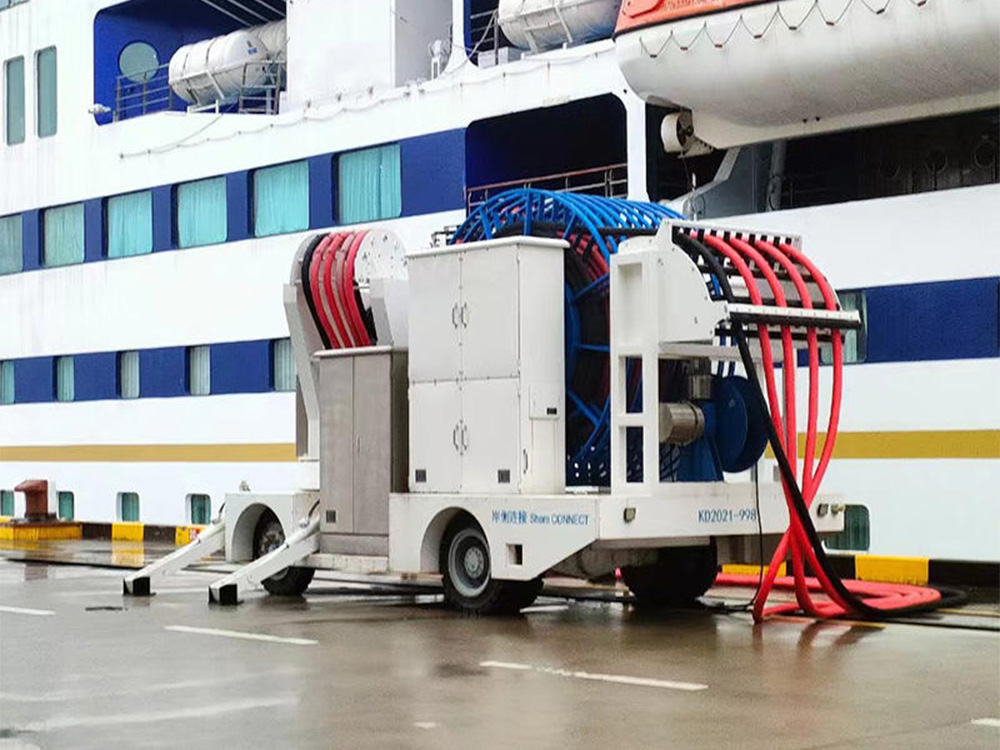

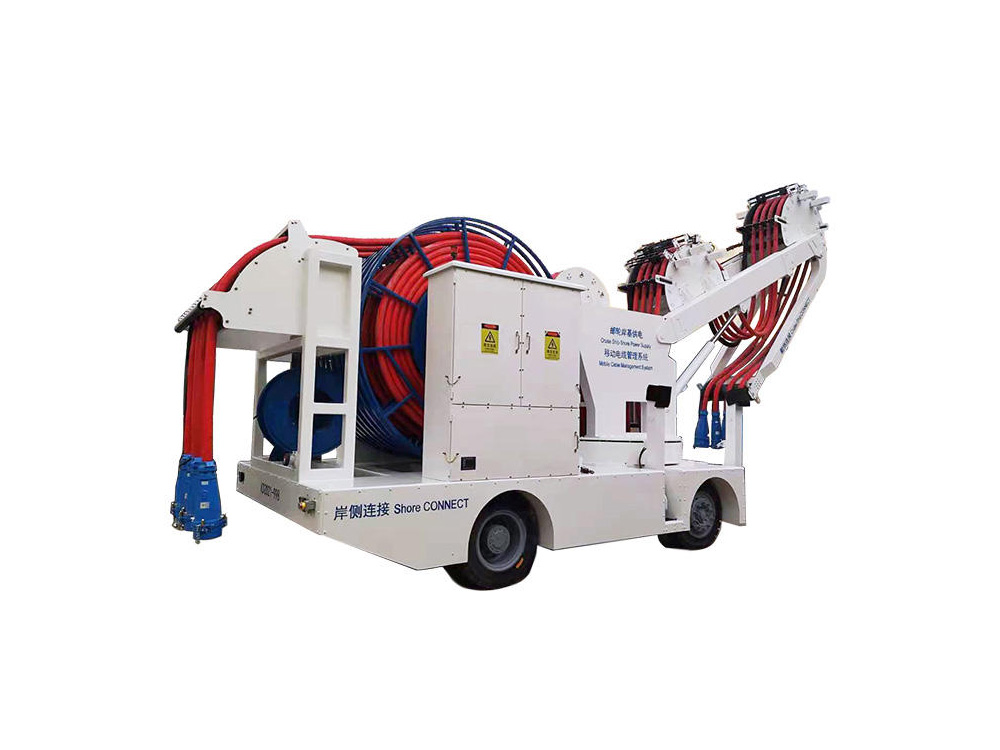

2. Set up two sets of cable systems. The shore-side connection cable system is connected to the high-voltage socket box, and the ship-side connection cable system is connected to the cruise power receiving interface to realize power supply from the shore to the cruise ship.
3. Ship-connecting cables include 4 power cables and marine connectors, 1 neutral cable and marine connector, 2 control cables and connectors, 1 communication cable and plug. The cable length is accurate according to the conditions of each terminal and hydrological conditions. Determined after calculation.
4. The ship-connecting cable has the functions of retracting and retracting the whole row and individually, and the ship-connecting cable is easy to operate.
5. The length of the shore connection cable is determined according to customer requirements. Generally, the effective length does not exceed 40 meters.
